When it comes to chemical dosing in water and wastewater treatment, operators face a critical decision: purchase individual components and field-install them, or invest in a pre-engineered chemical feed skid or panel-mounted chemical feed system? For most municipal facilities, the answer increasingly points toward integrated chemical feed systems. Here's why, and what you need to know to select the right solution for your water or wastewater treatment operation.
What Is a Chemical Feed Skid?

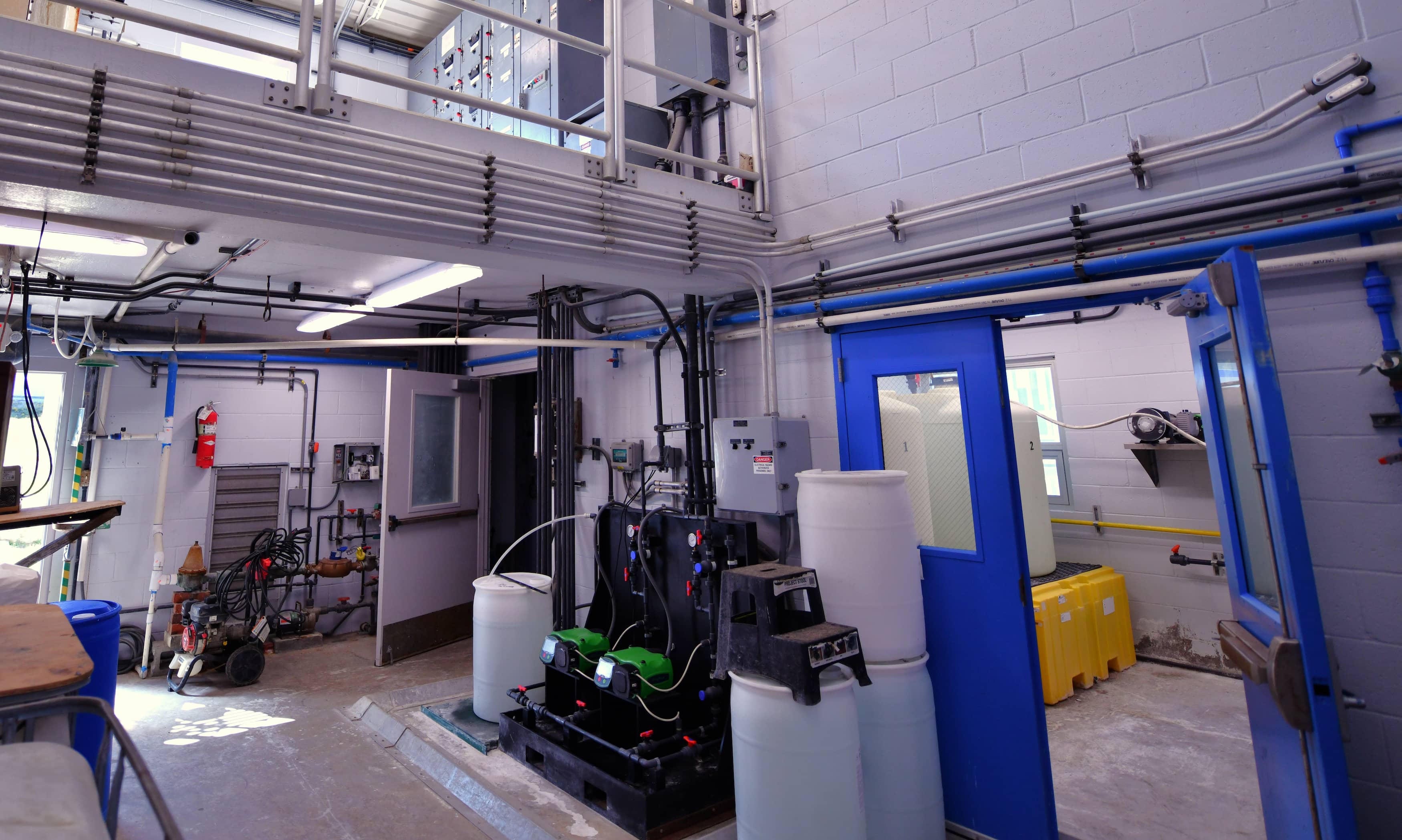

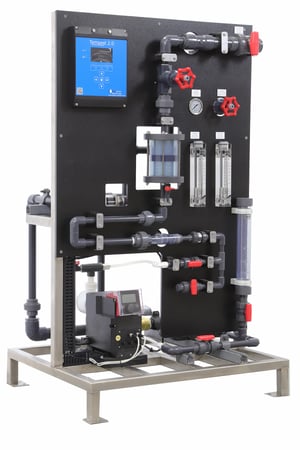

A chemical feed skid is a pre-assembled, factory-tested system that delivers precise chemical dosing to your treatment process. Unlike purchasing separate chemical feed pumps, piping, pressure gauges, calibration column, valves, and controls, a chemical feed system integrates all necessary components onto a single base frame or panel, ready for installation.
These chemical feed systems typically include:
-
Chemical metering pumps (diaphragm or peristaltic)
-
Calibration columns for pump verification
-
Control panels with local and remote operation capabilities
-
Pressure relief valve, ball valves, piping and fittings
-
Safety features including leak detection and emergency shutoffs
The skid arrives at your facility pre-piped, pre-wired, and tested, requiring only utility connections and startup commissioning.
Why Choose a Skid Over Individual Components?
Reduced Installation Time and Labor Costs
Field-installing individual chemical feed components requires significant labor: mounting pumps, running conduit, pulling wire, plumbing connections, programming controls, and extensive testing. A skid reduces installation time by 60-80% compared to field assembly. Your maintenance staff can focus on operations rather than spending weeks coordinating electricians, pipefitters, and instrument technicians.
Factory Testing and Quality Assurance
Every reputable skid manufacturer conducts factory acceptance testing (FAT) before shipment. This means your entire chemical feed system has been pressure-tested, electrically checked, and operationally verified under controlled conditions. When components are field-assembled, you're essentially conducting your FAT on-site, where troubleshooting is more expensive and time-consuming.
Integrated Safety Features
Chemical handling presents serious safety risks. Engineered skids can incorporate containment basins sized to regulatory requirements, properly rated materials for chemical compatibility, ventilation considerations, and safety interlocks that might be overlooked in field assembly. The integrated design ensures that if a leak occurs, it's contained and detected immediately.
Simplified Maintenance and Documentation
With a skid system, you receive comprehensive documentation: P&IDs, electrical schematics, parts lists, and maintenance procedures, all specific to your integrated system. Troubleshooting becomes more straightforward when you can reference a single system rather than piecing together documentation from multiple vendors.
Space Optimization
Modern skid designs maximize vertical space and minimize footprint. In retrofit applications where floor space is limited, a well-designed skid can pack more functionality into less area than individually mounted components.
Warranty and Single-Source Accountability
When something goes wrong with a field-assembled system, finger-pointing between component vendors is common. With a skid, one manufacturer stands behind the entire system's performance, simplifying warranty claims and technical support.
Features of Modern Chemical Feed Systems
When evaluating chemical feed system options, prioritize these capabilities:
Flow-Paced Dosing: Systems should accept 4-20mA signals from flowmeters to maintain proportional chemical feed rates as plant flows vary. This prevents over-dosing during low-flow periods and under-dosing during peak demand.
Redundancy: Critical processes warrant duplex or triplex pump configurations. Even if you only need one pump for normal operation, having a standby prevents emergency situations when the primary pump fails.
SCADA Integration: Modern facilities require remote monitoring and control. Look for systems offering Modbus, Ethernet/IP, or Profibus communication protocols that integrate seamlessly with your existing SCADA infrastructure.
Calibration Capability: Built-in calibration columns allow operators to verify pump output without disconnecting piping or disrupting the process. This simple feature ensures accurate dosing and regulatory compliance.
Chemical Compatibility: Not all materials withstand all chemicals. For sodium hypochlorite, specify PVDF or CPVC wetted parts. Verify material compatibility before purchase to avoid premature failure.
Expandability: Treatment processes evolve. Choose skids designed for easy addition of pumps or integration of future chemical feeds without major rework.
Safety Interlocks: Pump operation should interlock with process conditions (low flow, high tank level, leak detection) to prevent chemical releases or process upsets.
Selecting the Right System: Key Considerations
Chemical Characteristics
The chemical you're feeding dictates pump technology and materials. Diaphragm pumps excel with corrosive liquids due to minimal contact between chemical and pump mechanisms. Peristaltic pumps work well with sodium hypochlorite as they are not susceptible to out-gassing air lock.
Dosing Requirements
Calculate your maximum, minimum, and average flow rates carefully. Pumps operate most accurately in the middle 25-75% of their maximum capacity range. Oversizing leads to poor turndown and inaccurate dosing at low flows. Undersizing prevents meeting peak demands.
Environmental Conditions
Indoor installations in climate-controlled buildings have different requirements than outdoor skids exposed to freezing temperatures and direct sunlight. Outdoor systems need weatherproof enclosures (NEMA 4X minimum), heat tracing for freeze protection, and UV-resistant materials.
Facility Constraints
Measure door widths, ceiling heights, and transport pathways before ordering. A cost-effective skid does you no good if it won't fit through your chemical building door. Some facilities require modular designs that can be assembled on-site.
Operational Preferences
Discuss control philosophy with your operators. Do they prefer local pushbutton stations or rely primarily on SCADA? Simple relay logic or PLC-based controls? Understanding how your team works helps specify appropriate control systems.
Regulatory Requirements
Secondary containment volume requirements vary by jurisdiction. EPA requires 110% of the largest tank volume, but state regulations may be more stringent. Fire codes may require specific electrical classifications for enclosed chemical storage areas. Clarify these requirements during the design phase.
Panel-Mounted Systems: An Alternative Approach
For facilities with limited floor space or when integrating chemical feed into existing structures, panel-mounted systems offer advantages. These wall-mounted units provide similar integration benefits as skids but optimize vertical space. They're particularly effective for:
-
Small water treatment plants with limited chemical building space
-
Lift station applications where floor-mounted equipment creates trip hazards
-
Retrofits where floor loading is a concern
-
Facilities requiring multiple small-capacity chemical feeds in close proximity
Panel systems typically include the pump, control panel, and small day tank in a single vertical assembly. They sacrifice some containment capacity compared to floor-mounted skids but maintain the integration and testing advantages.
Let Us Help With Your Next Project
The choice between field-assembled components and engineered skid systems isn't just about upfront cost. When you factor in installation labor, testing time, safety compliance, long-term reliability, and operator peace of mind, integrated skid systems consistently deliver better value for municipal operations.
Yes, a skid costs more initially than purchasing pumps alone. But municipalities aren't in the business of assembling equipment; they're in the business of treating water reliably and safely. Engineered skid systems let operators focus on process optimization rather than troubleshooting poorly integrated components. The most expensive equipment isn't necessarily the equipment with the highest purchase price. It's the equipment that doesn't work reliably when you need it most.
For your next chemical feed project, whether new construction or equipment replacement, consider pre-engineered options. Our team at Core & Main understands municipal applications and can provide comprehensive documentation with technical support. Your future self, and your operators, will thank you when commissioning takes days instead of weeks and the system simply works as designed.
